Piston alignment tool
» All orders ship following business day
» 30-day return policy
» All orders ship following business day
» 30-day return policy

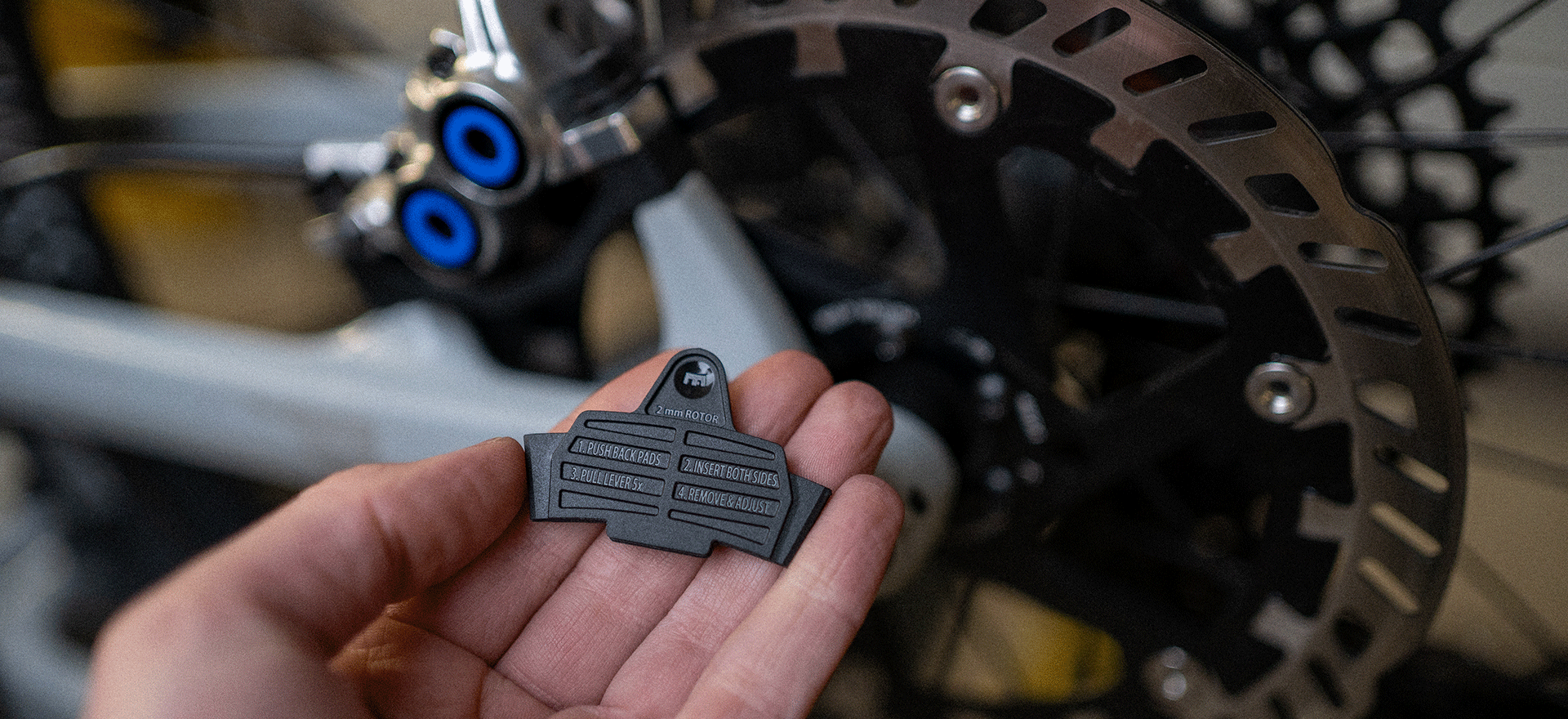

The Piston Alignment Tool ensures that all caliper pistons are aligned exactly symmetrically.
This creates the best conditions for precise and uncomplicated alignment of the brake caliper. Further advantages include more even wear of the brake pads, a defined pressure point, and reduced braking and riding noise.
Uneven move out of the pistons can occur in all brake calipers, regardless of the manufacturer or model. This can be caused by minimal manufacÂturing tolerances between the piston and square sealing rings. External influences such as contamiÂnation or prolonged storage of the brake caliper can also lead to uneven move out of the pistons.
The Piston Alignment Tool ensures that all pistons are massaged and aligned exactly symmetrically.
Symmetrically aligned pistons provide the ideal basis for noise-free adjustment of the air gap between the brake rotor and pads. With the tool, it’s child’s play.
Unevenly extending pistons slightly bend the rotor during braking, resulting in a spongy bite point. The tool ensures a crisp pressure point and direct braking power.Â
MaterialÂ
Composite
Compatibility
2 and 4 piston calipers
Variants
version for calipers with 2.0 and 2.5 mm rotors
